SRF Solid Recovered Fuel Rotary Dryer Machine Capacity 3TPH-50TPH

SRF Dryer capacity 3TPH-50TPH

1.Product Introduction Rotary drum dryer

An SRF (Solid Recovered Fuel) Dryer is a large-scale industrial drying system designed to efficiently process solid recovered fuel. Its primary objective is to enhance the fuel's heating value (calorific value) by removing moisture. Typically utilizing a rotary drum design to meet the demands of large-scale continuous production, the equipment's processing capacity can be customized based on specific project requirements.

2.Application Rotary drum dryer

This equipment is mainly utilized in Solid Recovered Fuel production lines, particularly for processing fuels derived from municipal solid waste (MSW) or industrial waste. Once dried, the SRF features significantly lower moisture content and higher thermal energy, making it an ideal alternative fuel for co-processing in cement kilns, power plants, or industrial boilers. This process facilitates both energy recovery and waste volume reduction.

3.Working Principle Rotary drum dryer

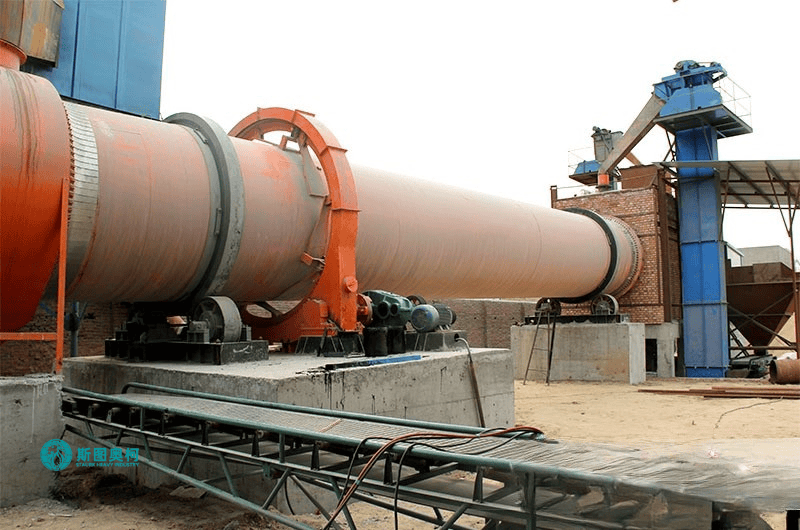

The SRF Dryer generally operates on the rotary drum drying principle. The main body consists of a slightly inclined, rotating cylindrical shell.

• Material Flow: Wet material enters from the upper end of the drum, while the dried product is collected from the lower end at the opposite side.

• Heat Exchange: Thermal media—usually hot air or high-temperature flue gas—enters from either the feeding or discharge end and exits through the upper part of the opposite end.

• Internal Mechanism: The interior of the drum is equipped with lifting flights or paddles. As the drum rotates, these flights continuously lift and shower the material, ensuring maximum contact with the hot airflow to improve drying efficiency and push the material forward.

• Integrated Shredding: Some models feature internal crushing blades designed to break down cohesive clumps into smaller pieces. This increases the surface area exposed to the hot air, thereby accelerating the drying speed.

4.Advantages Rotary drum dryer

• Powerful & Flexible Capacity: With processing capacities ranging from 3 TPH to 50 TPH (Tons Per Hour), the equipment meets the needs of small to large-scale projects and can be tailored to specific client requirements.

• High Drying Efficiency: The unique drum structure, combined with lifting flights and crushing devices, ensures thorough and uniform contact between the material and hot air, significantly increasing the rate of moisture evaporation.

• High Level of Automation: Equipped with advanced control systems, the dryer offers stable operation and ease of use, helping to reduce labor costs and ensure the reliability of continuous production.

• Broad Energy Adaptability: The system can utilize various heat sources—including electricity, natural gas, or LPG—allowing users to select the most economical option based on local energy costs and availability.

• Enhanced Fuel Quality: By effectively lowering the moisture content of the SRF, the dryer directly boosts its combustion value, reducing energy consumption and emissions during downstream utilization while improving overall resource recovery efficiency.

5.Technical Specifications Rotary drum dryer

6.Our Solutions

srf biomass rotary dryer

srf rotary dryer machine

3tph biomass rotary dryer

SRF Solid Recovered Fuel Rotary Dryer Machine Capacity 3TPH-50TPH Images
