Full set mineral processing machine for mobile gold wash plant
1.Product Introduction Ore Beneficiation Equipment
The Mobile Gold Washing and Recovery Plant is a modular mineral processing system that integrates crushing, screening, washing, and concentration. It is specifically designed for placer gold mining, riverbed panning, and tailings reclamation. Featuring a detachable modular structure, the plant supports wheeled, crawler, or skid-mounted chassis, allowing it to adapt to complex terrains such as deserts, riverbanks, and mountainous regions for rapid deployment and easy relocation. Core components include a vibrating feeder, a high-pressure wash trommel screen, a classifying screen, gravity separation sluices, and a tailings conveyor system. The plant is driven by diesel generators or electric motors and supports automated control and remote monitoring.
2.Application Ore Beneficiation Equipment
-
Placer Gold Mining: Ideal for high-mobility gold recovery operations in rivers and tidal flats, serving as an efficient alternative to stationary lines while reducing initial capital expenditure (CAPEX).
-
Tailings Re-selection: Secondary recovery of low-grade tailings to maximize resource utilization and mitigate environmental impact.
-
Remote Mining Development: Enabling rapid production and high-efficiency operations in regions with poor infrastructure, such as parts of Africa and Southeast Asia.
-
Environmental Remediation: Integrated with wastewater treatment systems to meet strict environmental standards, suitable for mining operations near urban areas.
3.Working Principle Ore Beneficiation Equipment
-
Feeding & Coarse Screening: Raw material enters a multi-stage screening system via a vibrating feeder. Waste rock larger than 10cm is separated to reduce the processing load on downstream components.
-
High-Pressure Washing & Scrubbing: Material smaller than 10cm enters the trommel screen, where high-pressure water jets perform triple-spraying to strip away clay and sand, ensuring gold particles are fully liberated.
-
Classification & Separation:
-
Fine Materials (<6mm): Transported via slurry pumps to horizontal centrifugal concentrators or pulsating sluices, utilizing centrifugal or gravitational force for gold enrichment.
-
Medium Materials (6–15mm): Directed to fixed sluice boxes for further recovery.
-
Coarse Materials (>15mm): Discharged as final tailings.
-
Tailings Management: Equipped with a water recycling system, achieving a water utilization rate of up to 90% and reducing discharge risks.
4.Advantages Ore Beneficiation Equipment
• High Recovery Rate: Utilizing horizontal centrifugal technology, the recovery rate for crystalline placer gold exceeds 90%, with some units reaching over 95%.
• Flexible Deployment: The modular design allows for rapid assembly and disassembly, reducing transportation costs by 40% and making it ideal for frequent site changes.
• Intelligent Control: Equipped with a real-time monitoring system to remotely track operating status and gold content data, minimizing manual intervention.
• Superior Durability: Core components such as the trommel screen are made of high-manganese steel, offering a service life of over 5 years and reducing maintenance frequency by 60%.
• Environmental Compliance: Integrated wastewater treatment and dust recovery systems satisfy increasingly stringent environmental regulations.
• Cost-Effectiveness: Compared to stationary production lines, the investment is reduced by 30%, making it perfect for small-to-medium mines or rapid production during the exploration phase.
5.Our Solutions
Product Tags:
|
|

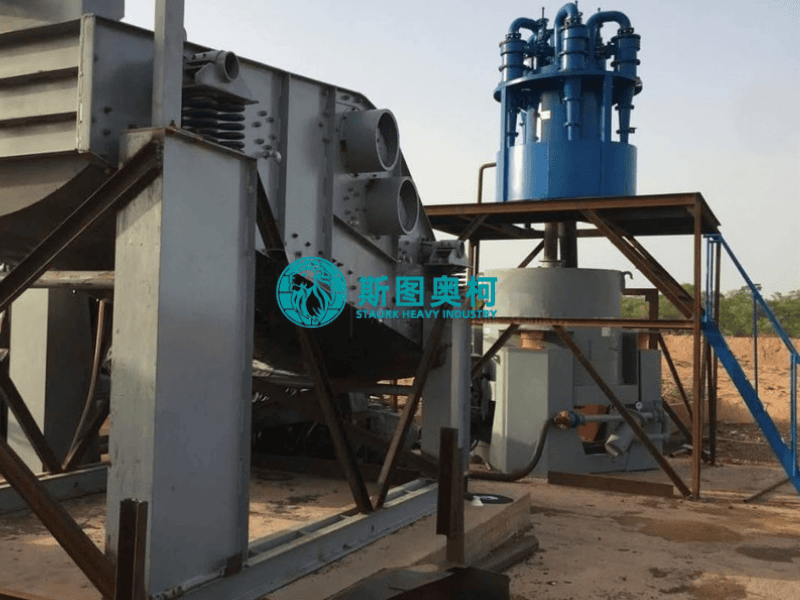

Full Set Mineral Processing Machine 20TPD-3000TPD Mobile Gold Wash Plant Images
|
